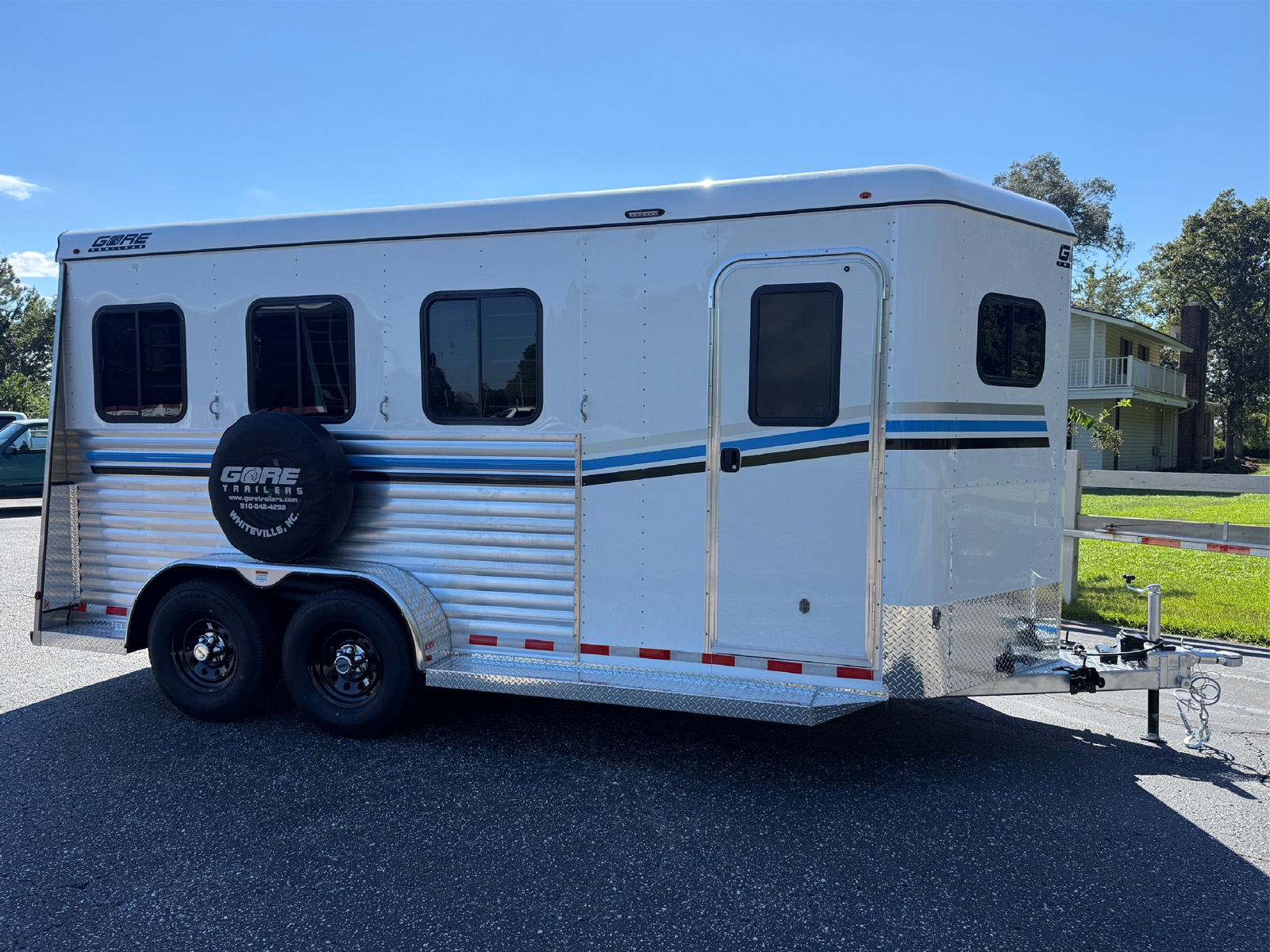

stock # Pull Type #9
- Add to compare
- Print page
![[#9] Three Horse Slant Load Pull Type Trailer with Tack and Dressing Room with Extruded Sides full](https://goretrailers.com/wp-content/uploads/2024/11/trailer9new2-Enhanced-SR.jpg)
![[#9] Three Horse Slant Load Pull Type Trailer with Tack and Dressing Room with Extruded Sides full](https://goretrailers.com/wp-content/uploads/2024/11/trailer9new3-Enhanced-SR.jpg)
![[#9] Three Horse Slant Load Pull Type Trailer with Tack and Dressing Room with Extruded Sides full](https://goretrailers.com/wp-content/uploads/2024/11/trailer9new4-Enhanced-SR.jpg)
![[#9] Three Horse Slant Load Pull Type Trailer with Tack and Dressing Room with Extruded Sides full](https://goretrailers.com/wp-content/uploads/2024/11/trailer9new2-Enhanced-SR-255x170.jpg)
![[#9] Three Horse Slant Load Pull Type Trailer with Tack and Dressing Room with Extruded Sides full](https://goretrailers.com/wp-content/uploads/2024/11/trailer9new3-Enhanced-SR-255x192.jpg)
![[#9] Three Horse Slant Load Pull Type Trailer with Tack and Dressing Room with Extruded Sides full](https://goretrailers.com/wp-content/uploads/2024/11/trailer9new4-Enhanced-SR-255x170.jpg)
| Trailer Type | Pull Type |
| Size | Three Horse |
| Configuration | Slant |
| Condition | New |
- 7’6″ Height
- LED Tail Lights, Runner & Marker Lights
- White Fiberglass Top (Cooler Inside) w/ Top Air Scoop for each horse
- Axles – Tandem – 6000 Ibs. ea. – Electric Brakes w/ D.O.T. Approved Break Away and Two Piece Safety Cable w/ Hooks on Tongue
- LT235/85R16, 10-Ply Radial Tires w/ 16″ Wheels w/ Hub Caps with Spare Tire and Wheel and Cover

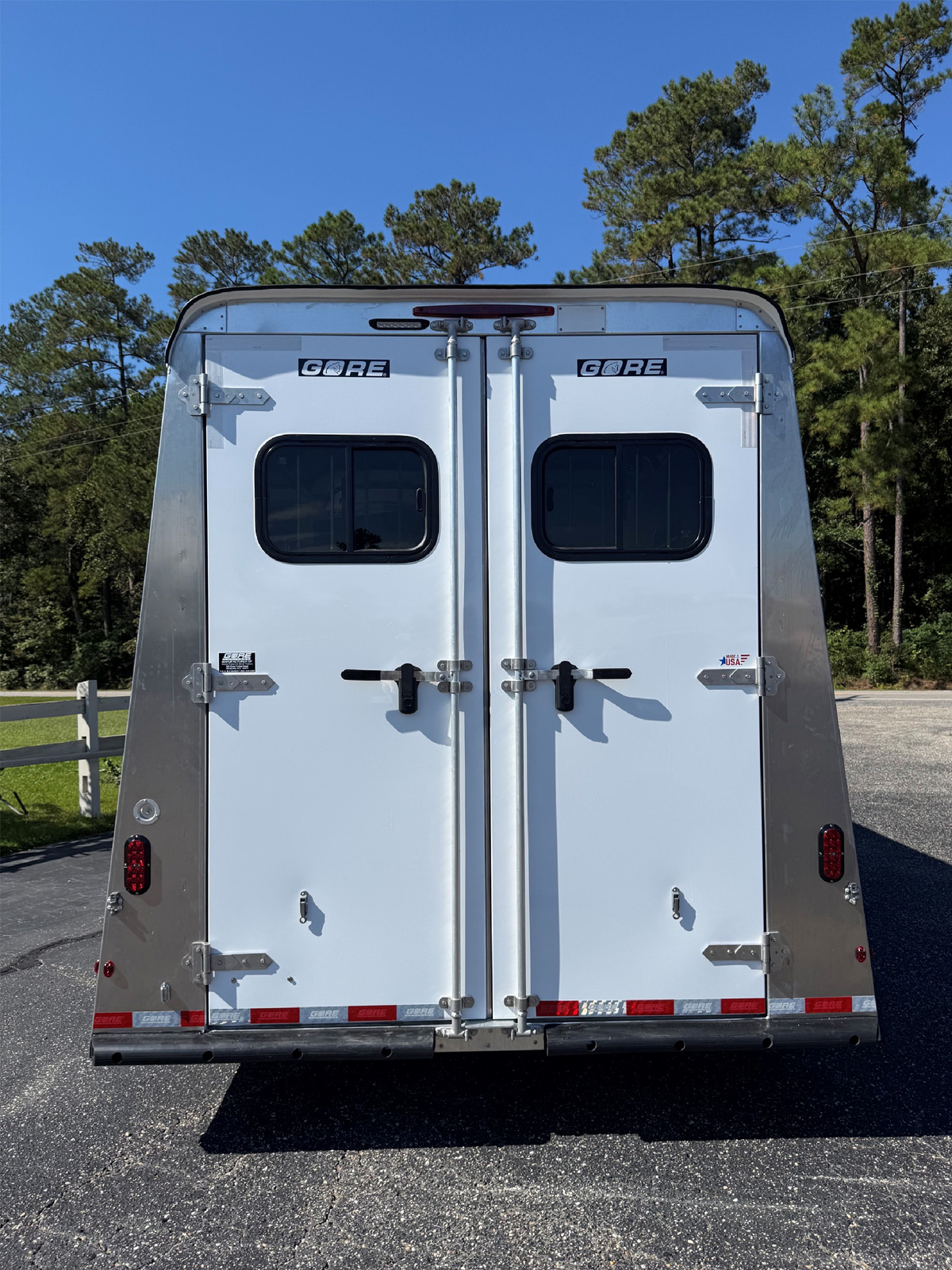

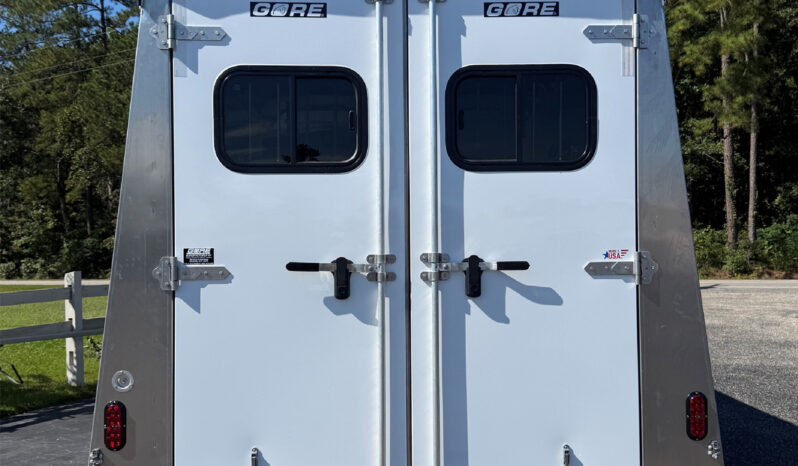

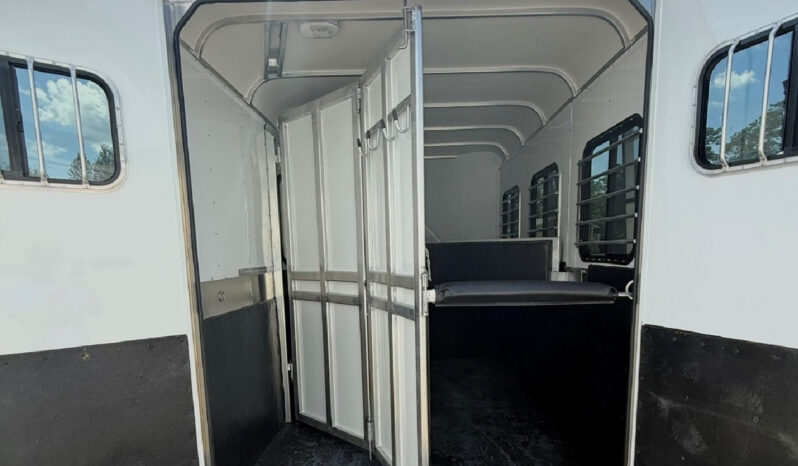

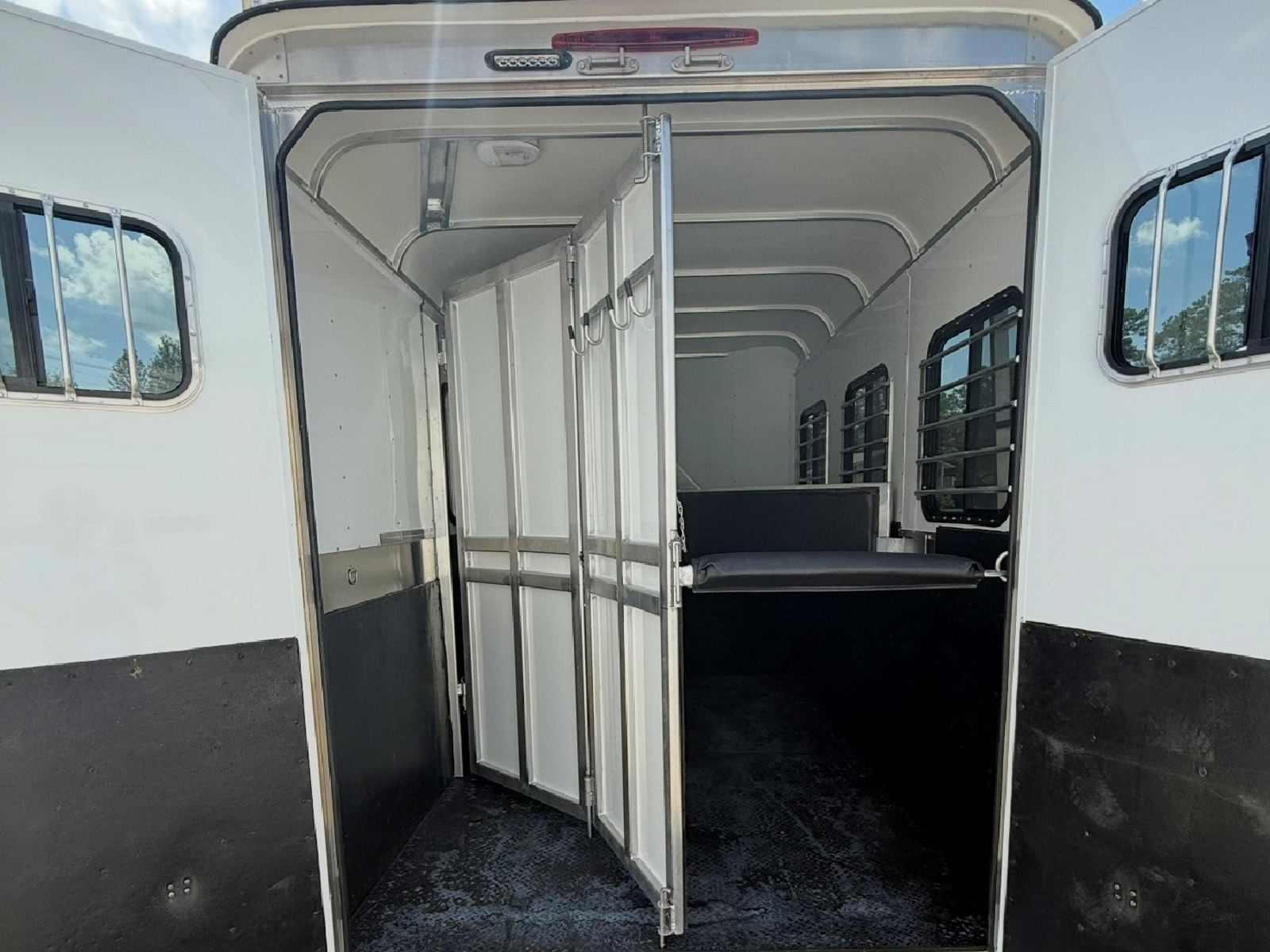

- Tall Back Doors w/ (15″ x 22″) Sliding Window w/ Bars in Each Door w/ Dual Cam Latch
- Rear Rubber Bumper
- Extruded Sides, Mill Finish Aluminum up to 3’9″ Tall w/ White Aluminum Above
- Treated Wood Floor w/ Rubber Floor Mats in Horse Stall (Aluminum Floor @ No extra charge)
- Rubber Mats in Dressing Room

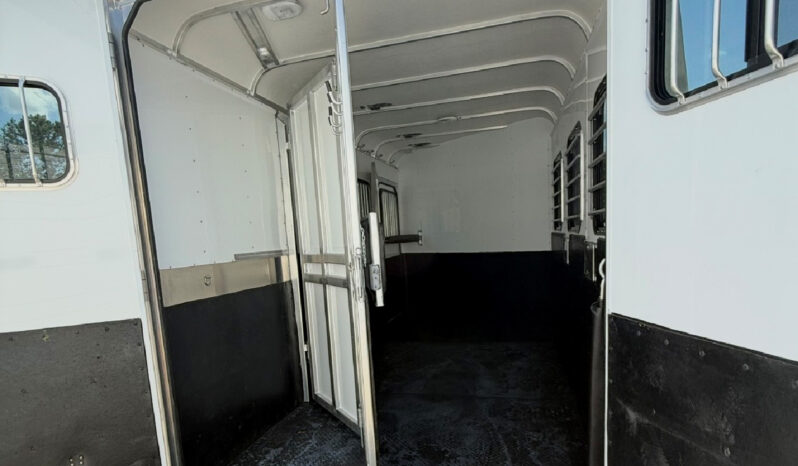

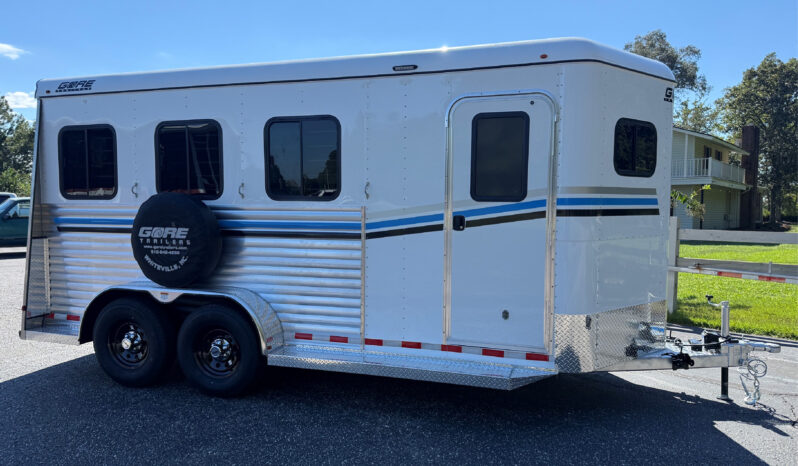

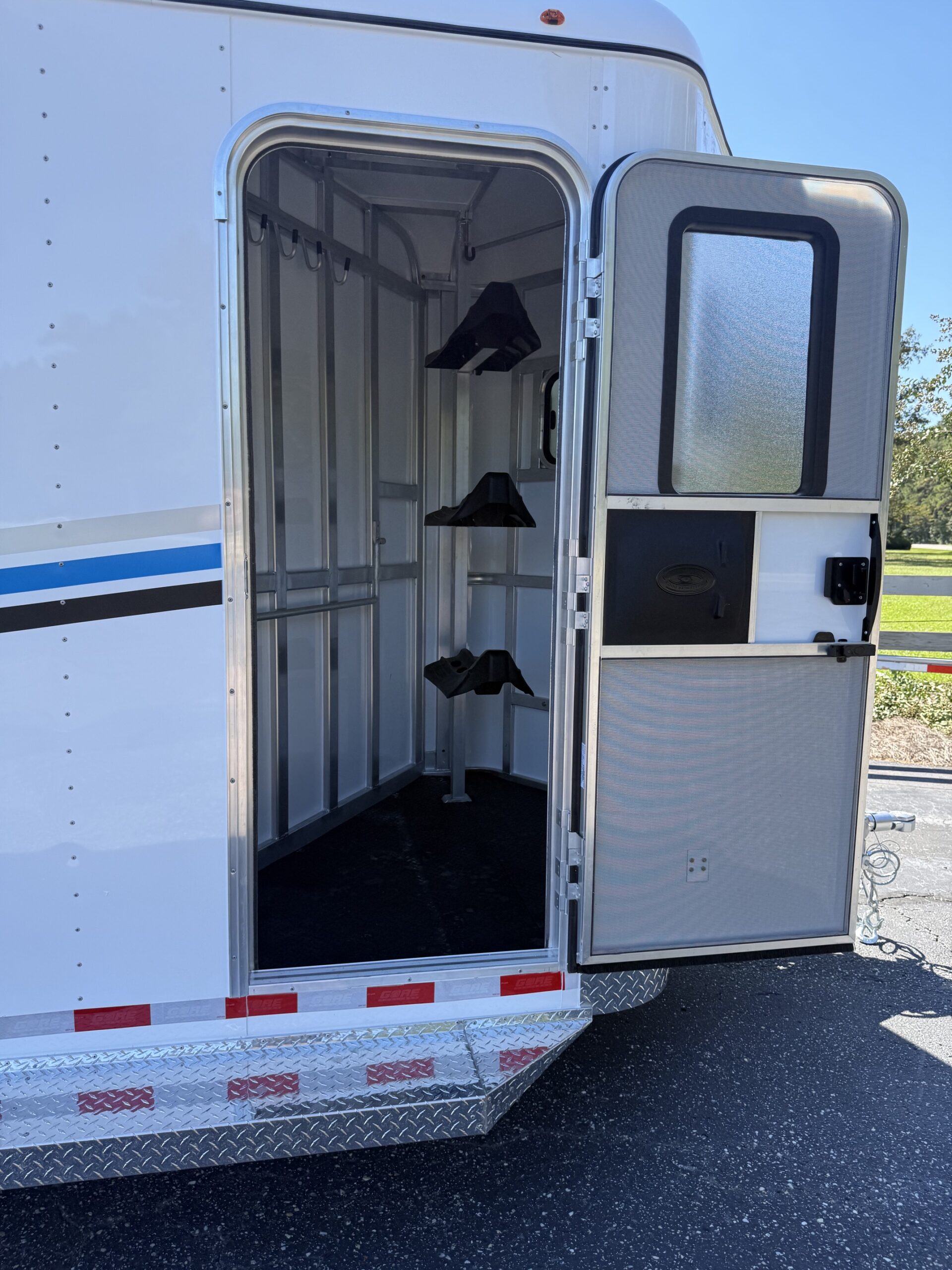

- (28″ X 70″) Dressing Room Door w/ Screen on Right Side
- Door Hold Backs on All Doors

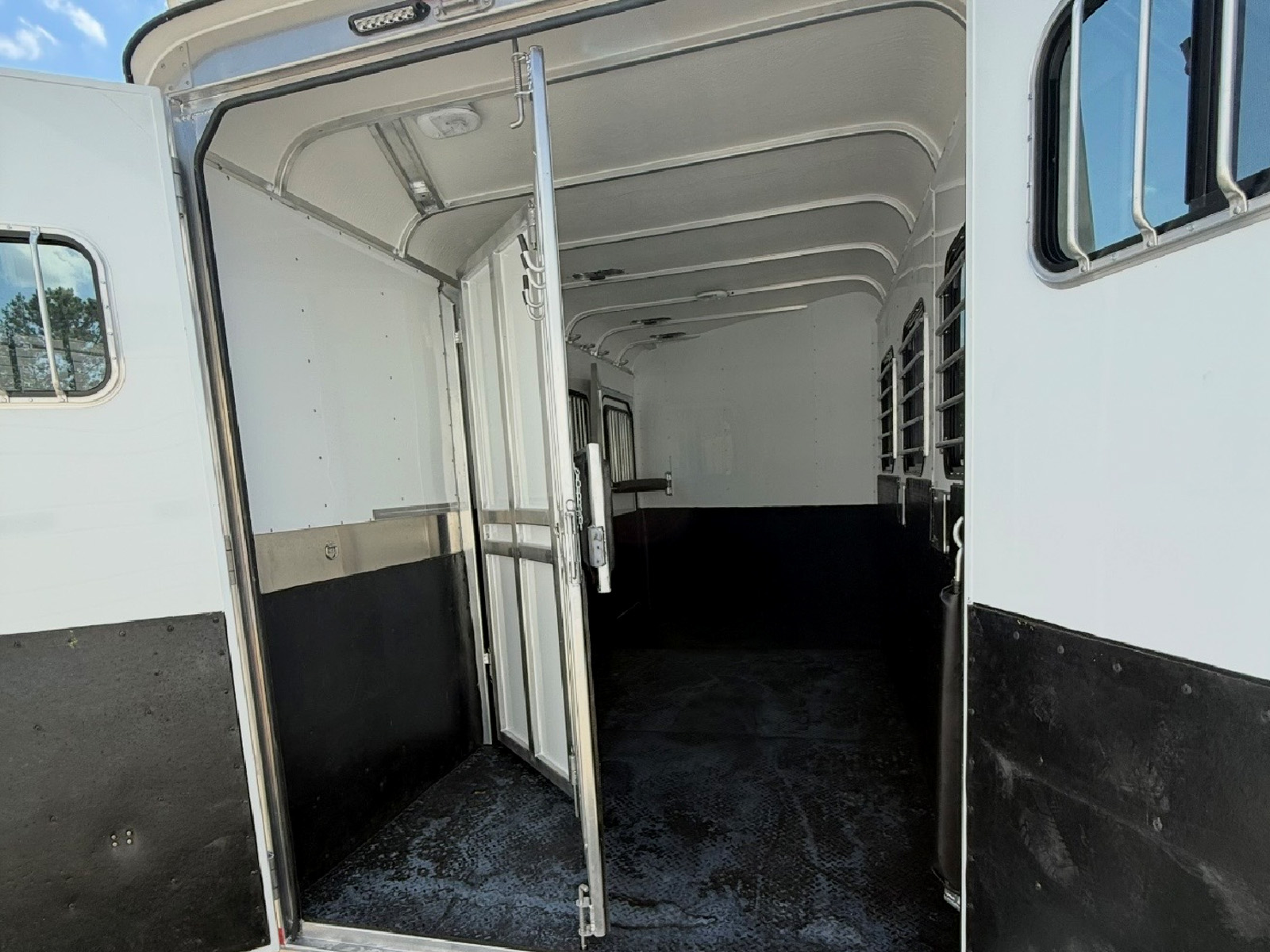

- Wall in Horse Stall Insulated and Aluminum Lined

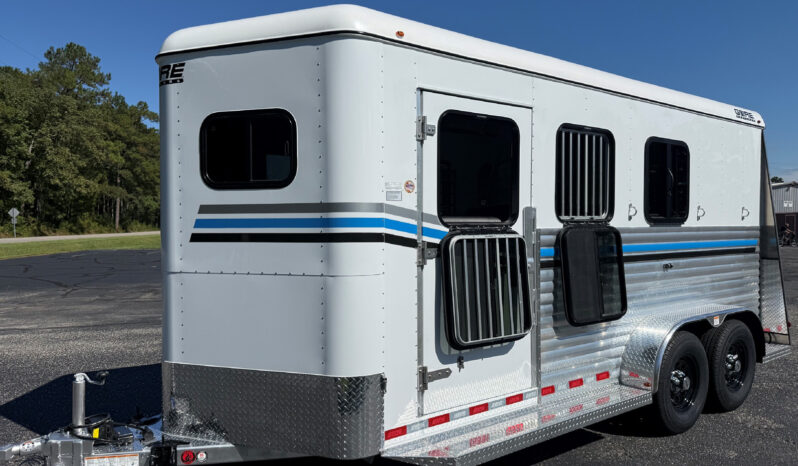

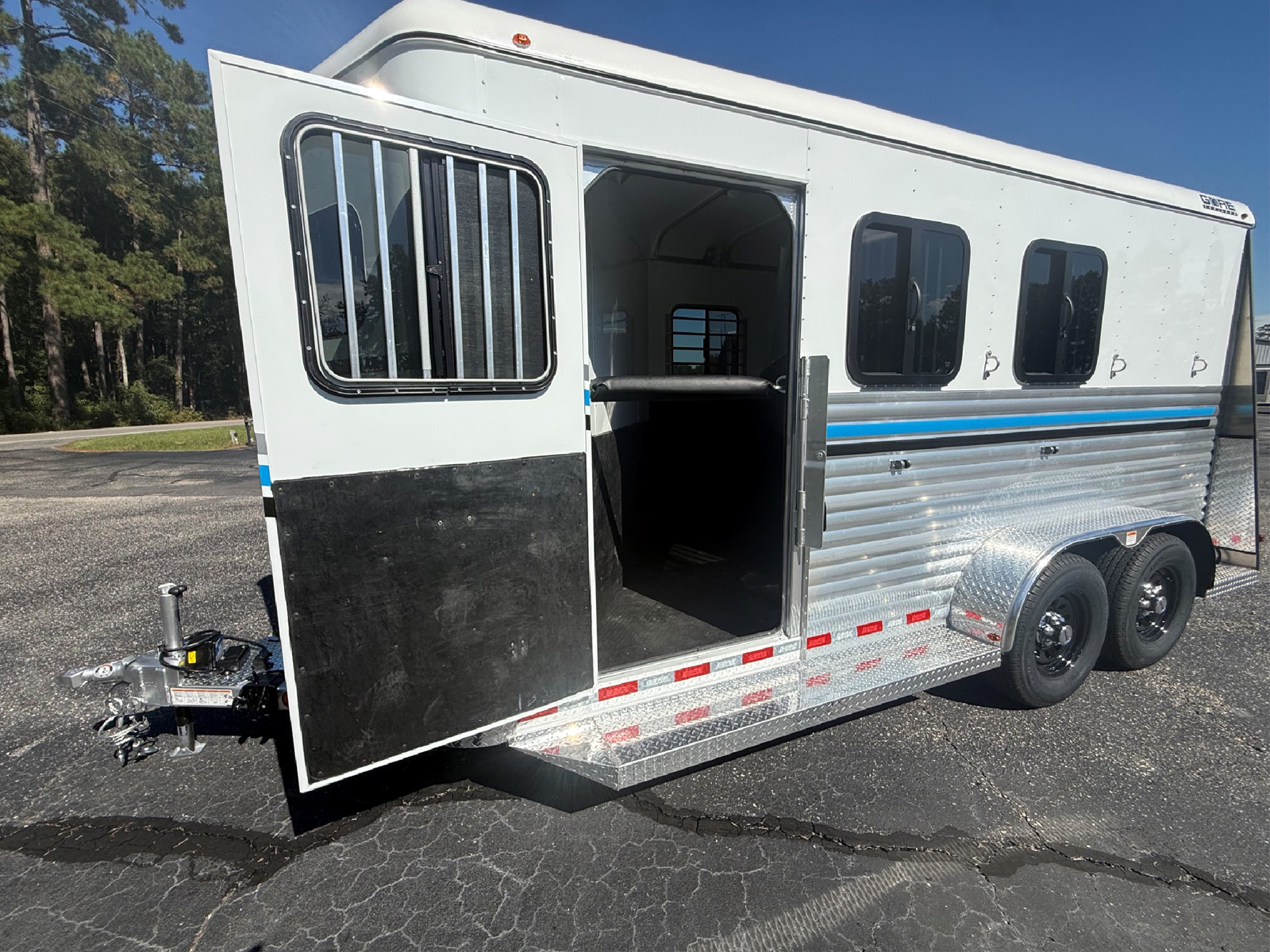

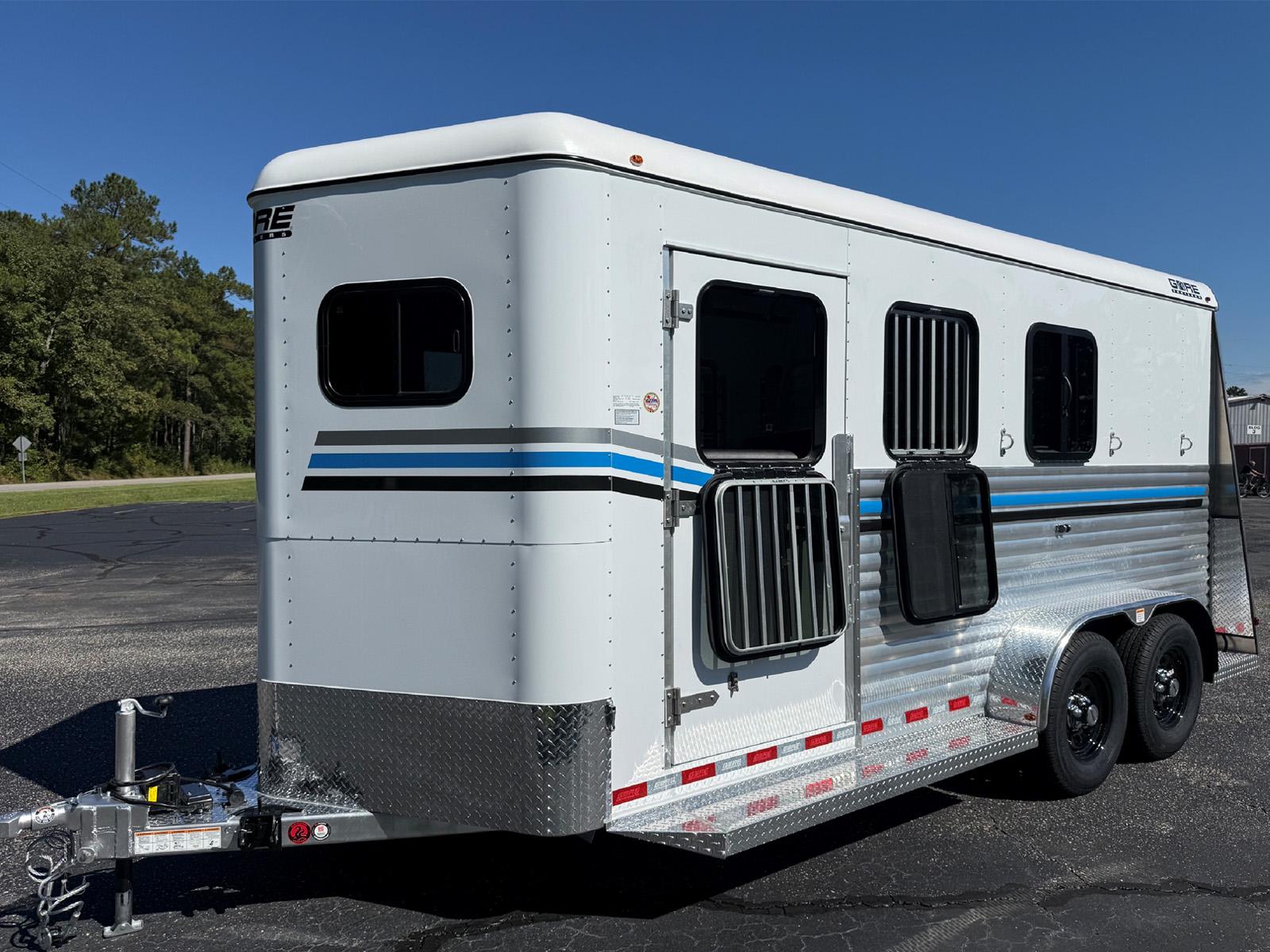

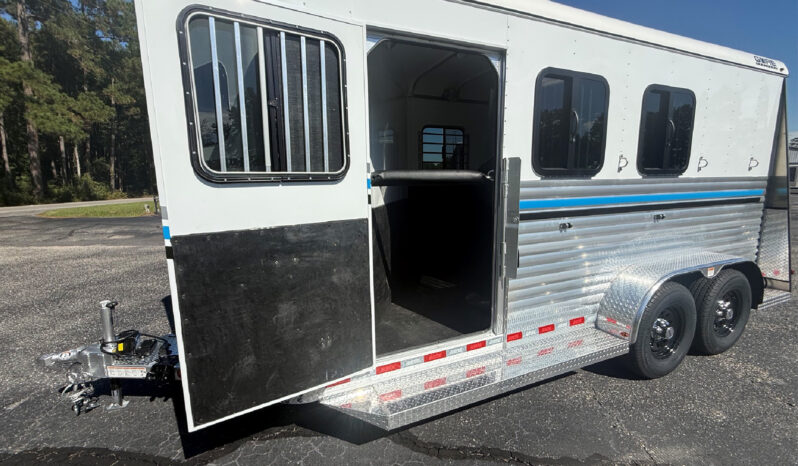

- (25″ X 25″) Drop Down Feed Windows w/ Bars and One (35″ X 70″) Gore Made Escape Door w/ (25″ X 25″) Drop Down Feed Window w/ Bars

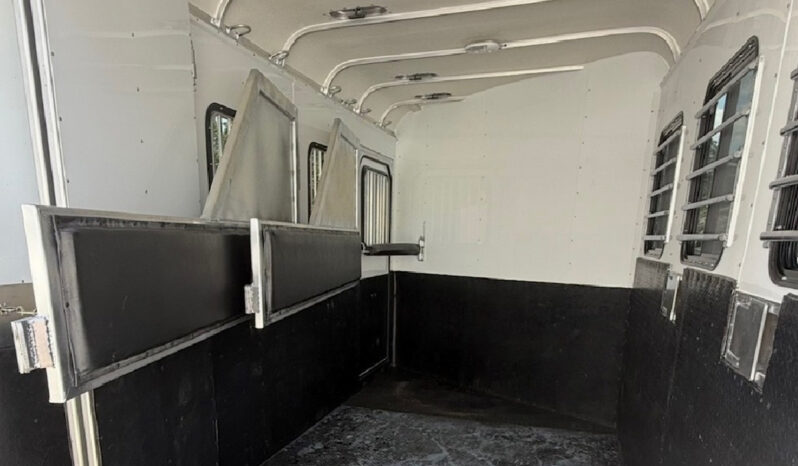

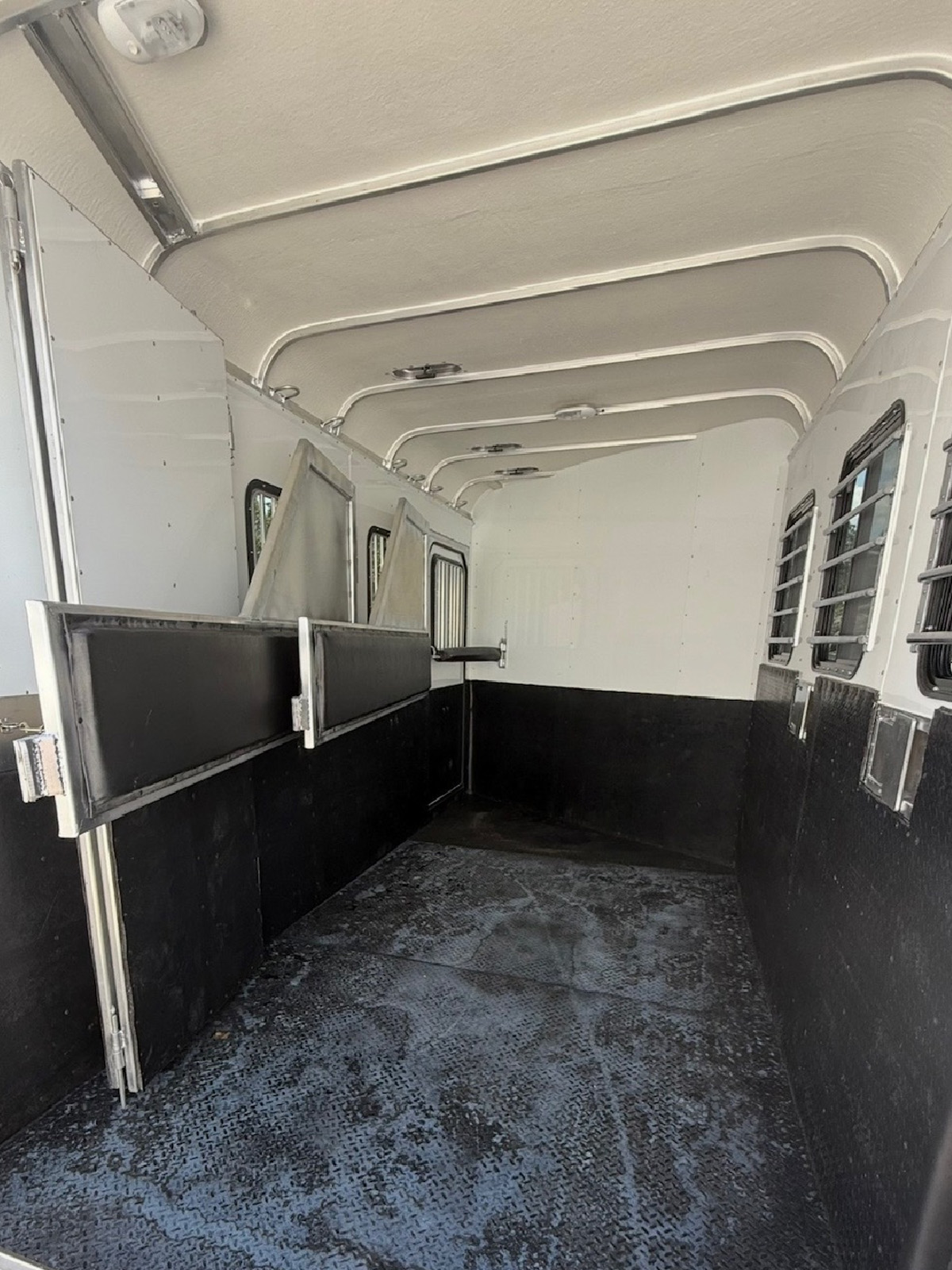

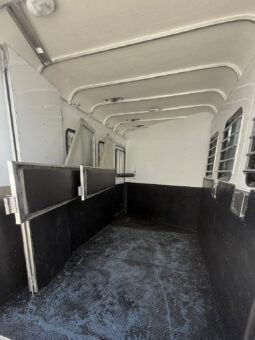

- Two Removable Padded 16″ Aluminum Middle Divider (Spring Loaded)
- No Inside Fender Wells – Tear Drop Fenders Outside w/ Safety Edging
- Rubber Kick Plates, 36″ Tall (Horses Head), 44″ Tall (Horses Rear)
- Padded Breast Bar at Front Escape Door, Padded Butt Bar at Rear Door

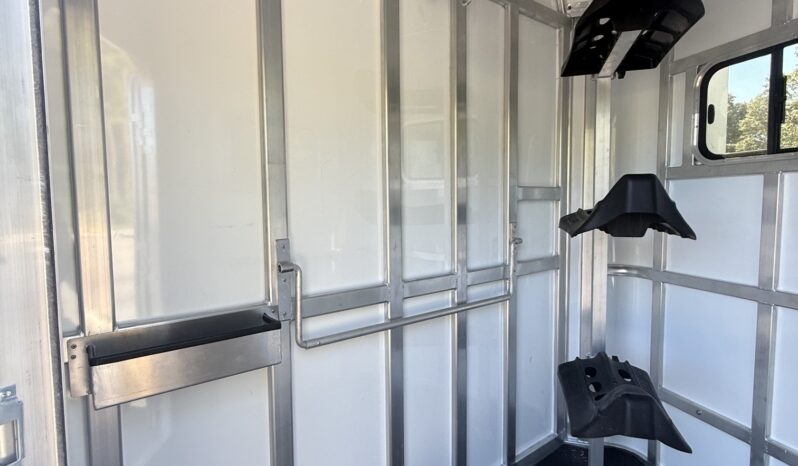

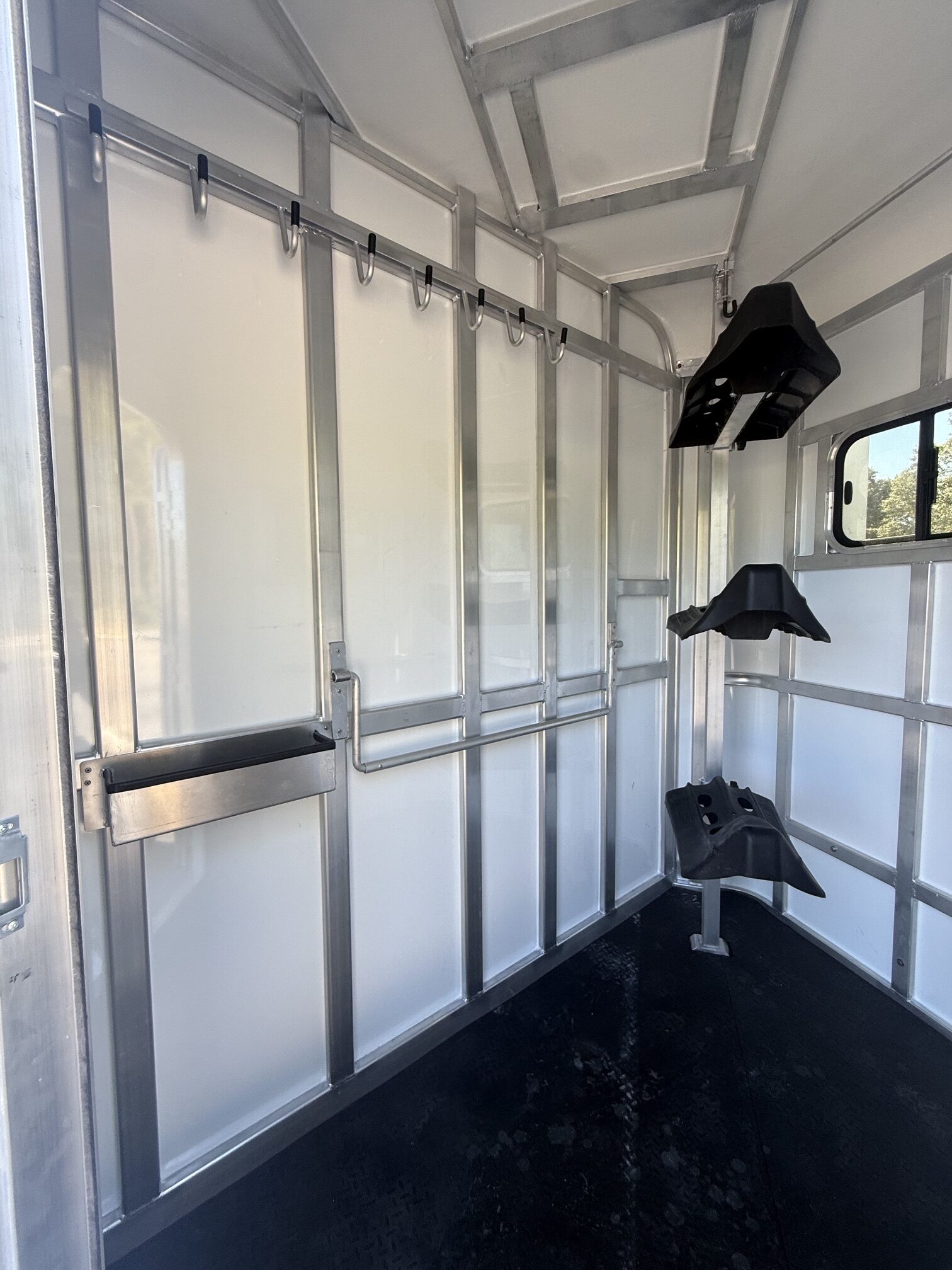

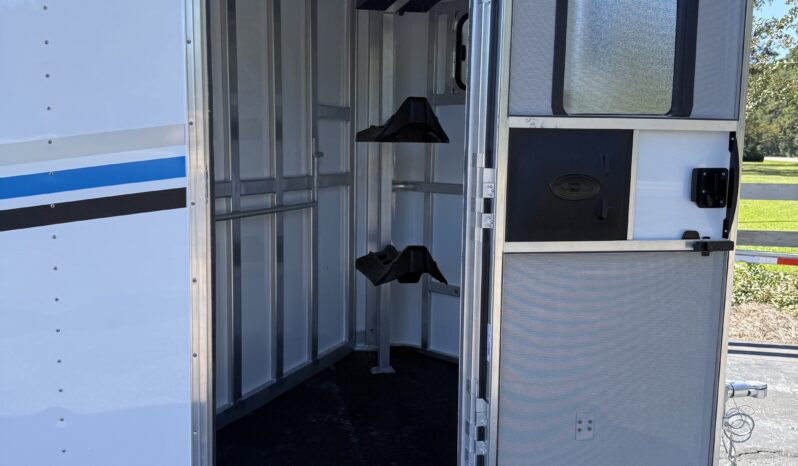

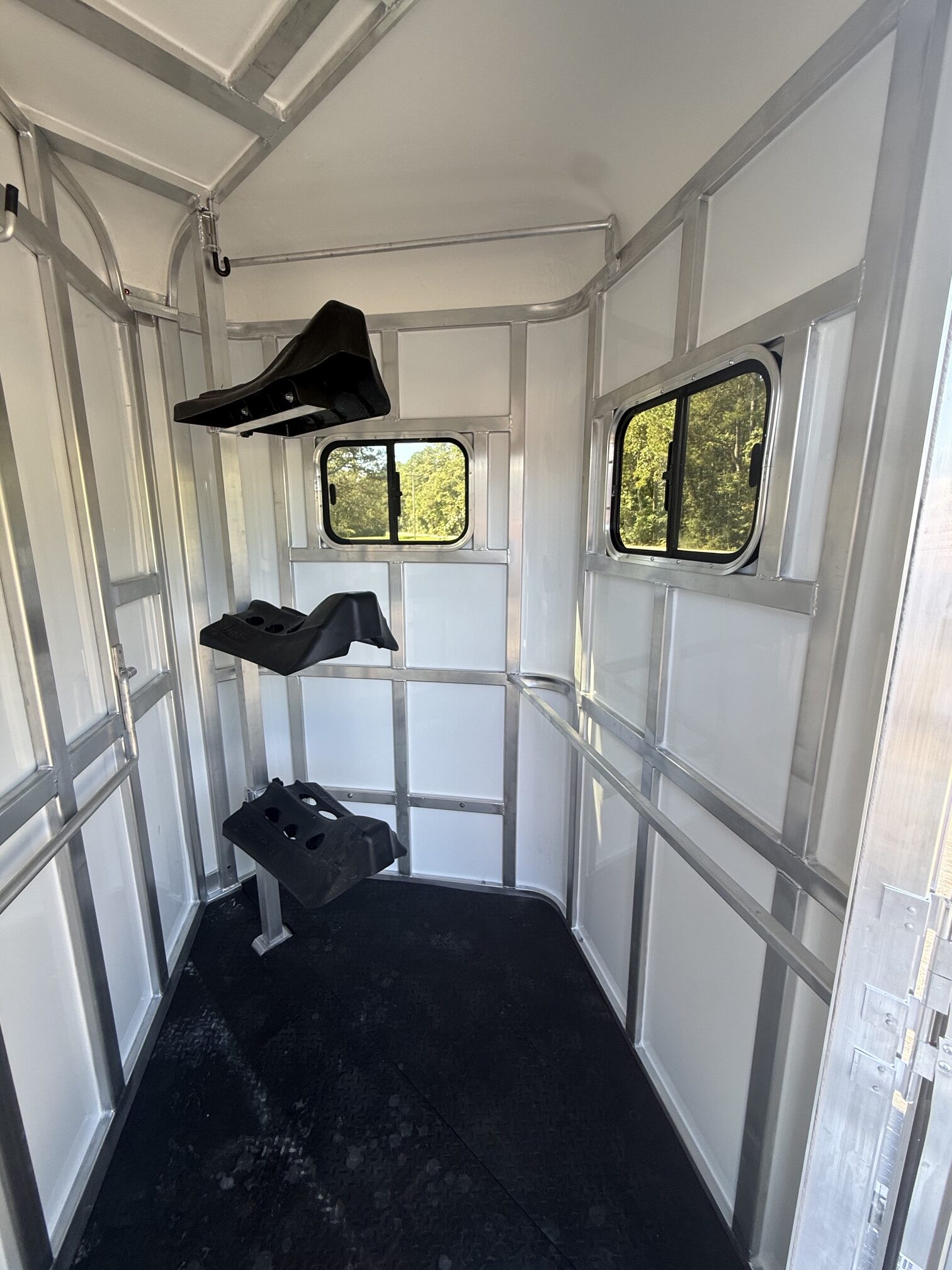

- Front Dressing Room: Clothes Rod, Blanket Rack w/ Four Bridle Hooks, Brush Tray

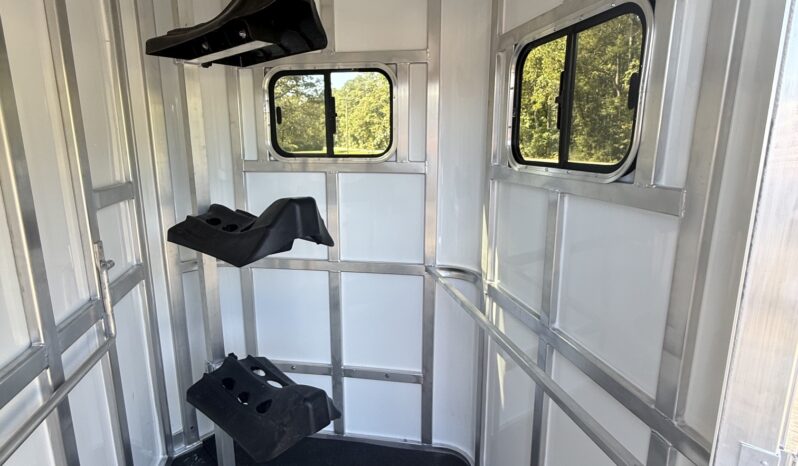

- Removable Back Tack Area: Four Bridle Hooks, Saddle Racks
**Removable or Solid. Note: When you “Delete” the Back Tack, the Saddle Racks can be moved to the front dressing room - Light in Dressing Room, Light in Horse Stall, Light in Rear Tack, Two Outside Lights
- Two Ties inside per stall for head, One Tie outside for each horse (both sides of trailer)
- Bus Window (25″ X 25″) at each horses tail w/ bars over windows (one for each horse)
- Two (15″ X 22″) sliding windows in aerodynamic front
- 16″ Diamond Plate Gravel Guard around front of trailers and on fenders
- Three 2″ Tape Stripes (1″ Available in some colors)
FEATURES
- Steel Chassis With All Aluminum Frame
- White Fiberglass Top
- Treated Wood Floor
- Aerodynamic Front
Weight
| Total Weight | 4330 lbs |
| Hooked to Truck | 3710 lbs |
| Hitch Weight | 620 lbs |

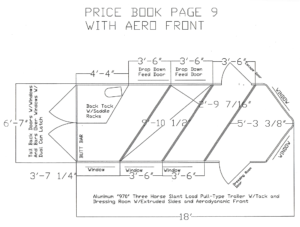

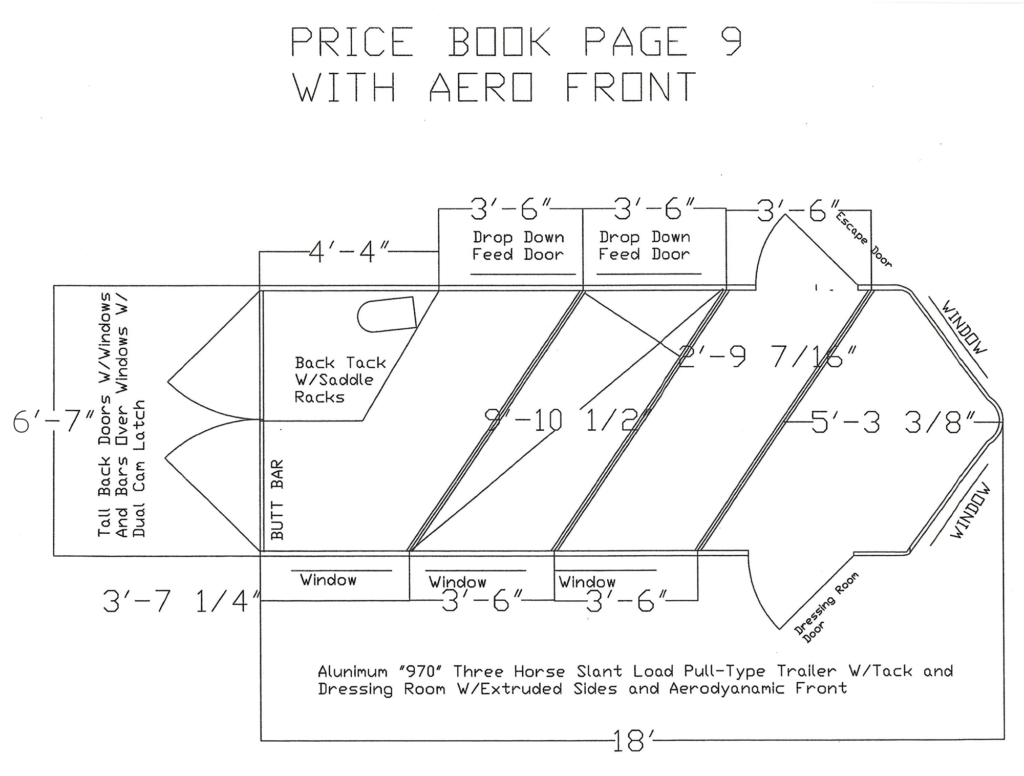

Size
| Outside Width | 8' 4" |
| Height From Ground | 9' 3" |
| Total Length | 18' |
| Head Room | -- |
| Horses to Stand | -- |
| Stall Length | -- |
EXTERIOR FEATURES
- 15″, 5 or 6-Hole Aluminum Wheels (ln place of regular wheels)
- Spot Light
- Diamond plate gravel guard to go around front of trailer
- Diamond plate gravel guard on fenders (this includes both fenders)
- Side Running Boards
- Ramp over back doors
INTERIOR
- 12 Volt fan in horse stall
- Feed Bags
SIZE
- 7′ Wide Model Available
